Changmei walking tractors feature low fuel consumption, high speed, great tractive force and strong climbing capacity. They are widely applied in mountainous and hilly farmland for ploughing, soil preparation and other agricultural operations, serving as essential farm machinery for numerous farmers. After long-term heavy-duty field work, core assemblies such as the clutch, gearbox, brake and control mechanism are prone to wear and aging. Referring to the original factory parts catalog is critical for troubleshooting faults, selecting compatible spare parts and implementing routine maintenance.
Avoid Assembly Mistakes with Exploded-view Drawings

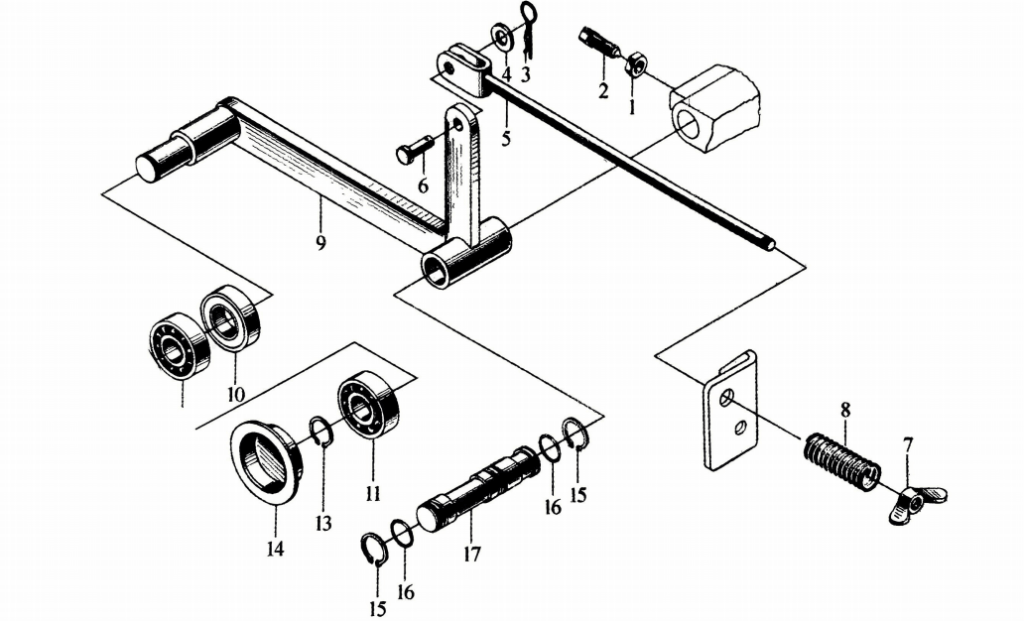

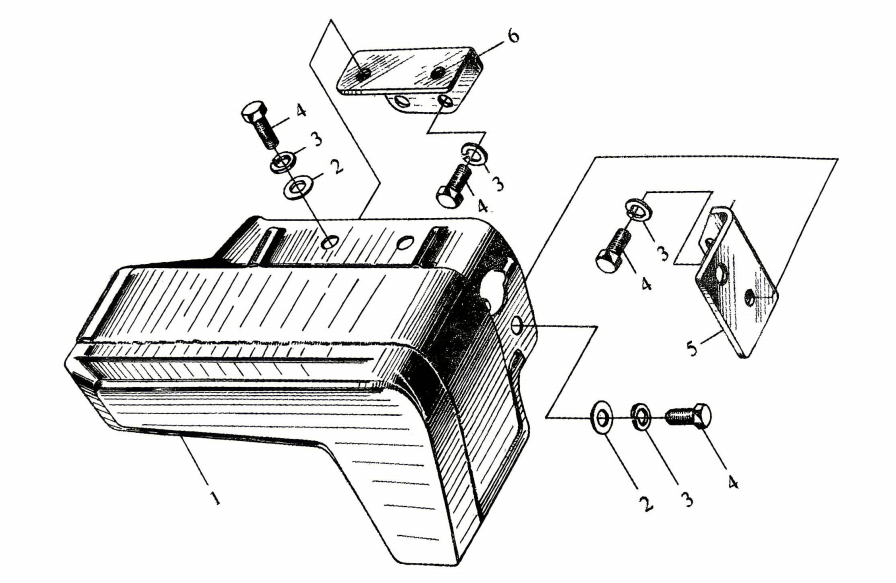

Many operators suffer from incorrect spare part purchase and disorderly disassembly-assembly during tractor repair. The original parts catalog breaks down the whole machine into nine major assemblies: clutch, gearbox, tensioner, brake, drive wheel, frame, drawbar frame, control mechanism and clutch housing. Equipped with exploded-view drawings, it marks serial numbers, part codes, national standard specifications and assembly quantity for every component. You may cross-check each part position against drawings during disassembly and repair to prevent mis-installation or omission of gaskets, oil seals, spring pins and other small components.
Quick Troubleshooting for Key Assemblies
The clutch acts as the core of power transmission. The catalog fully illustrates friction plates, pressure plates, release levers, springs, bearings and other components. In case of clutch slipping or incomplete disengagement during operation, inspect friction-plate wear by referring to drawings. Match spare-parts against LH41-series part numbers when purchasing driven discs and springs. Never mix friction plates of different specifications, or insufficient power output will occur.
The gearbox is a high-fault-rate assembly. Gear-shifting jamming, gear jumping and abnormal gear noise are mostly caused by worn shift forks, gears, bearings and oil seals. When repairing and disassembling the gearbox, identify driving gears, steering gears, main transmission gears and shift-fork shaft positions from exploded views. Purchase spare parts according to XLH61-37 serial part codes, and select oil seals and rolling bearings complying with national standards to guarantee transmission-system assembly precision.
The tensioner, brake, drive wheel and control mechanism are high-wear assemblies. Parts including tensioner-wheel bearings, springs, O-rings, brake shoes, return springs, drive-wheel inner & outer tyres, counterweights, control pull rods, torsion springs and pin shafts are listed in the wearing-parts catalogue. Conduct regular inspection in daily maintenance. Replace aged oil seals and sealing rings timely to stop oil leakage and mud intrusion, so as to extend service life.
Tips for Spare-part Selection & Routine Maintenance
Always select spare parts by part codes from the catalog rather than merely by appearance similarity. Parts with similar appearances may differ in bore diameter, thickness and mounting dimensions if their codes are inconsistent. Forced assembly will trigger secondary machine damage. The catalog also includes lists of random tools, packing contents and original technical documents, which can be used for parts-and-tool inspection upon new-machine delivery.
For Changmei walking tractor maintenance, replace defective components as required. After each shift of field work, fasten bolts and nuts, check gear-box oil level, apply grease to hinged moving joints and clear mud and debris. A complete parts catalog enables farmers to finish simple repairs independently, cutting machinery-repair costs, prolonging service life of Changmei walking tractors and securing stable performance in farming seasons.
